2-C offset 'straight' printing press with alcohol vapors

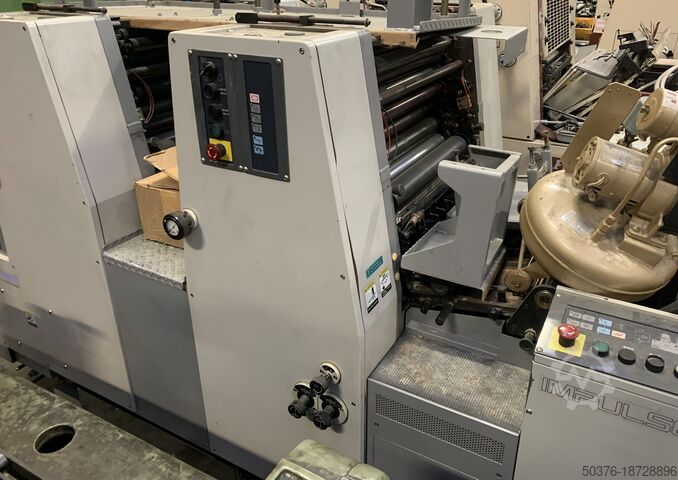

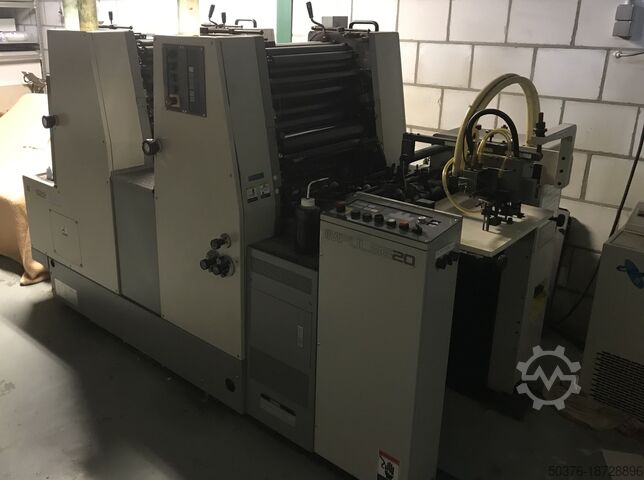

Hashimoto (Japan) Impulse F-522

In contrast to the previous offer, the machine has been thoroughly cleaned and inspected. Several replacements and repairs have been carried out, including new timing chains, a new drive chain for the feeder, replacement of some idler rollers, and all grippers on all drums have been made of stainless steel and are now functioning smoothly, ensuring excellent register. The rollers are rated approximately 7 out of 10; they are slightly glazed and close to their minimum dimensions, but a period of approximately 1500 to 2500 hours should still be manageable without any significant issues, which is what has been promised!

2-color offset press with high-quality construction, featuring hardened and ground gears, cylinders running in class P5 preloaded tapered roller bearings (sets of 2), and lubricated via oil bath and pressure lubrication.
B3 format (35x50 cm) in a conventional standard configuration (no autoplate or cocking), but with an alcohol dampening system with large rollers based on the SM52 design, producing excellent print quality.
From the original owner who did not maintain the machine properly (cosmetically); however, a comprehensive maintenance history is available, performed by the importer. The latest meter reading in the history is 11.6 million impressions from 2003. Due to illness and outsourcing, the previous owner, a printing broker, has hardly used the machine since then.
NEXT STEPS: We will check the machine against the current meter reading and ensure correct and reliable operation. C)2 dry ice cleaning is being considered, as is a complete overhaul of the machine, as the mechanical condition is exceptionally good. However, this would increase the cost, so the machine is currently offered in its current condition, "as is", EXW our warehouse in Son, NL (5,500,- EXW, NOW after refurbishment €7,500,- EXW van Rooij).
Any type of inspection is, of course, permitted.
We guarantee that the machine is free from cracks, cylinder damage and/or repairs, and that the gears are free from damage.
The rubber rollers are glazed and need to be replaced.
The Royce ECO circulating pump and cooling system for the dampening unit shows signs of corrosion.
Crsdpfx Apev Nv Tas Asi

Some specifications, for all specifications, open the PDF at the bottom of this page.
Maximum printing speed 12,000 sheets per hour
Maximum paper size 365 x 520 mm
Minimum paper size 100 x 148 mm or 148 x 100 mm
Maximum printing area 350 x 510 mm
Rubber blanket size 500 x 520 x 1.9 mm
Plate size 400 - 410 x 510 mm
Dampening roller in this case for film dampening is 1 (62mm)
Number of ink rollers 4 pieces of 46, 48, 52 and 54 mm
Feeder stack height maximum 850 mm
Delivery stack height max 360 mm

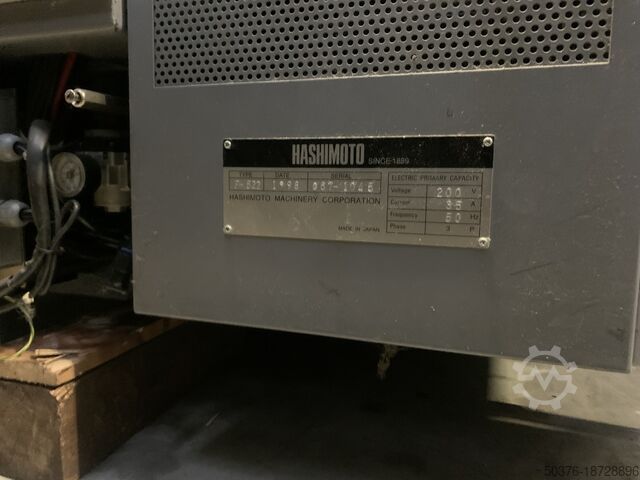

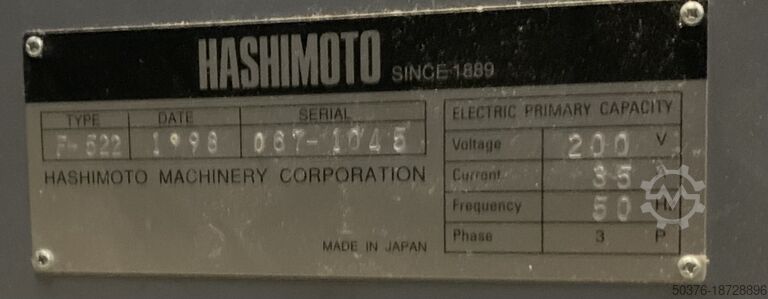

Electrical connection 3 phases 200 VAC 50HZ (primary), but there is a transformer for conversion from 3 x 415/400/380/230 VAC to 200VAC
Total power consumption 7kW
Primary fuse rating at least 20A
Dimensions LxWxH = 2765 x 1523 x 1560 mm
Net weight 4000 kg
